AERO JX Multi-Head Towbar P/N 2024818

P/N: 2024818

Aircraft operators have long been faced with a conundrum: is it best to use a strong (yet heavy) steel towbar, or to sacrifice some strength with a lightweight aluminum construction?

AERO Specialties JX-series multi-head aircraft towbar is the answer to your problems. Featuring the best of both worlds, the AERO Specialties JX-series multi-head aircraft towbar weighs only 110 lbs. (50 kg.), yet is constructed of heavy-duty DOM (Drawn Over Mandrel) 1026 cold-rolled seamless formed steel.

With a 3.25 inch (8.25 cm) diameter tube opening, the JX towbar is compatible with many towbar heads from AERO Specialties, Tronair, and other manufacturers.

The JX towbar has a towing capacity of 125,000 lbs. (56,699 kg.), making it the perfect solution for corporate and regional aircraft.

The strength of steel, with a similar weight to aluminum! Only from AERO.

Submit A Request

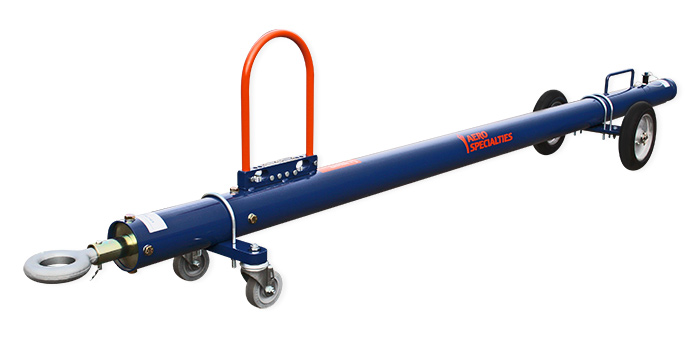

AERO JX Multi-Head Towbar P/N 2024818 - Image 2

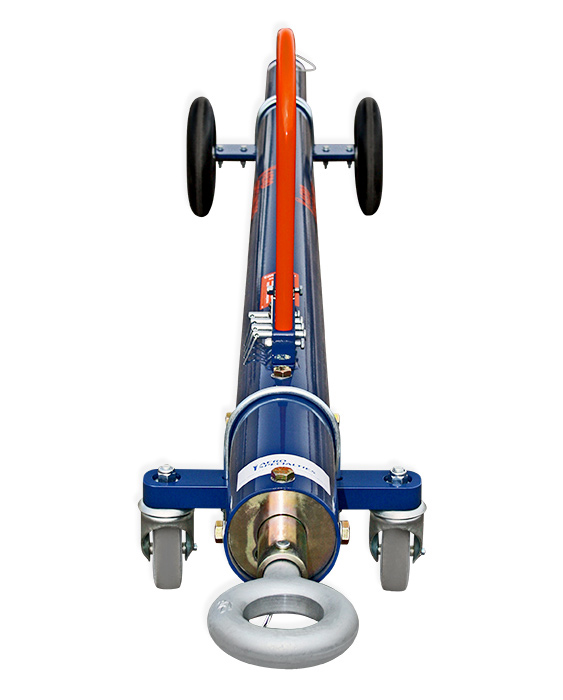

AERO JX Multi-Head Towbar P/N 2024818 - Image 3

Additional Information
Shipping

Description

Standard Features:
- 125,000 lb. capacity (56,699 kg.)
- Heavy-duty 1026 cold-rolled seamless formed steel construction
- “DropThru” linear shear protection on the lunette allows the operator to change a broken shear pin in seconds without tools and get back on the job, saving you from complicated and expensive ramp incidents
- Proprietary elastomeric lunette cushioning system provides smooth and gradual resistance during push and pull operations
- Lunette system is 100% maintenance free and won’t degrade over time
- Limited tow-eye rotation
- 3.25 inch (8.25 cm.) diameter tube opening accomodates many towbar heads manufactured by AERO Specialties, Tronair, and other manufacturers
- 2.625 inch (6.67 cm.) lunette eyelet I.D.
- Towbar weight: 110 lbs. (50 kg.)

Additional information

Weight	110 lbs
Specifications	Shipping dimensions (custom pallet): Length: 139" (353 cm.) Width: 22" (56 cm.) Height: 15" (38 cm) Weight: 154 lbs. (70 kg.)

Weight

110 lbs

Specifications

Shipping dimensions (custom pallet):

Length: 139" (353 cm.)
Width: 22" (56 cm.)
Height: 15" (38 cm)
Weight: 154 lbs. (70 kg.)
